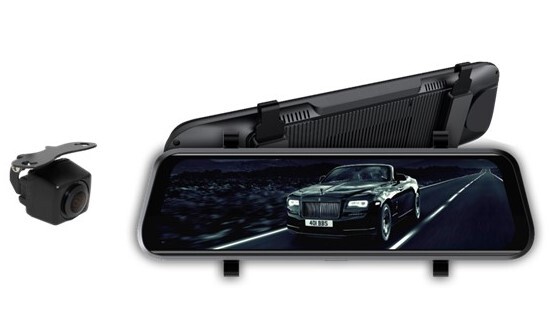

High Quality (AHD) Mini Camera and 9.6" Mirror Monitor Kit

Gives Super clear camera image on large 9.6" full screen display.

2 camera inputs to allow second camera.

3 VIEWING OPTIONS

Option 1 ALWAYS SHOWING CAMERA 1, connects to Camera on input 1

Option 2 ALWAYS SHOWING CAMERA 2, connects to Camera on input 2

Option 3 ALWAYS SHOWING MIRROR and then REVERSE CAMERA WHEN TRIGGERED in REVERSE

If Reverse trigger is connected it will overide mirror and show image from CAMERA 2 INPUT.

When Camera image is shown when connected to trigger it will show lower part of Camera image.



Comes with long 10 metres of cable to allow camera installation into small to larger vehicles.

Cable allows Camera to to turned on via Monitor button

Clip on design with rubber buffer allows universal installation to existing mirror.



Ideal for any vehicles that wants wide and clear viewing from their Cameras. Can choose with press of button for Camera on for camera 1 or optional snd camera or just camera when triggered to comes on

You can add extra camera

MC380  Mini Camera

MC580  Heavy Duty Camera

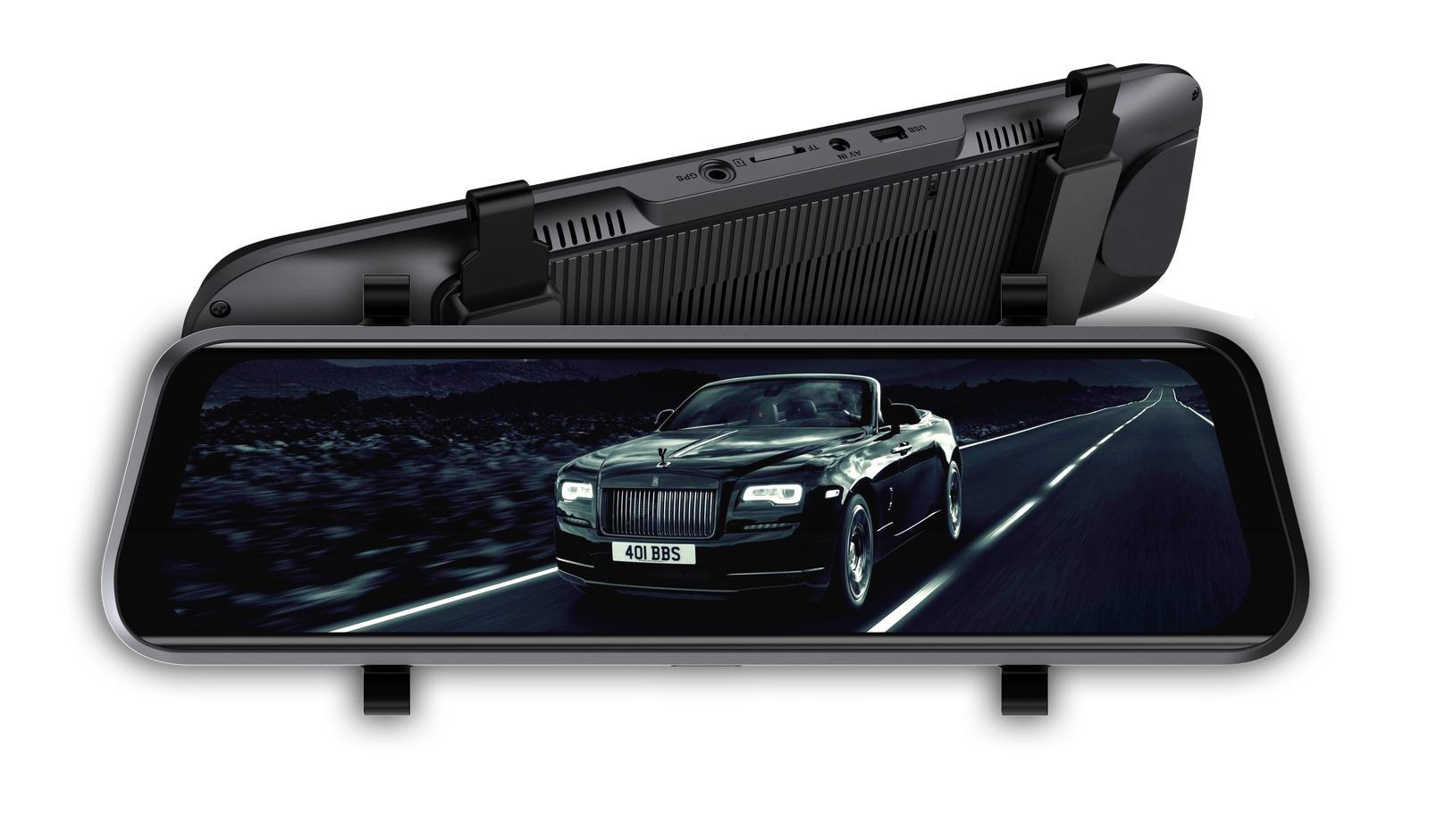

MONITOR:

  • 9.6” Mirror Monitor – Maximum display zone
  • Clips over existing mirror – rubber feet
  • High brightness and high resolution
  • 2 AHD video inputs (720P/1080P)
  • 10~28 volts DC
  • Auto switch ‘on’ when in reverse

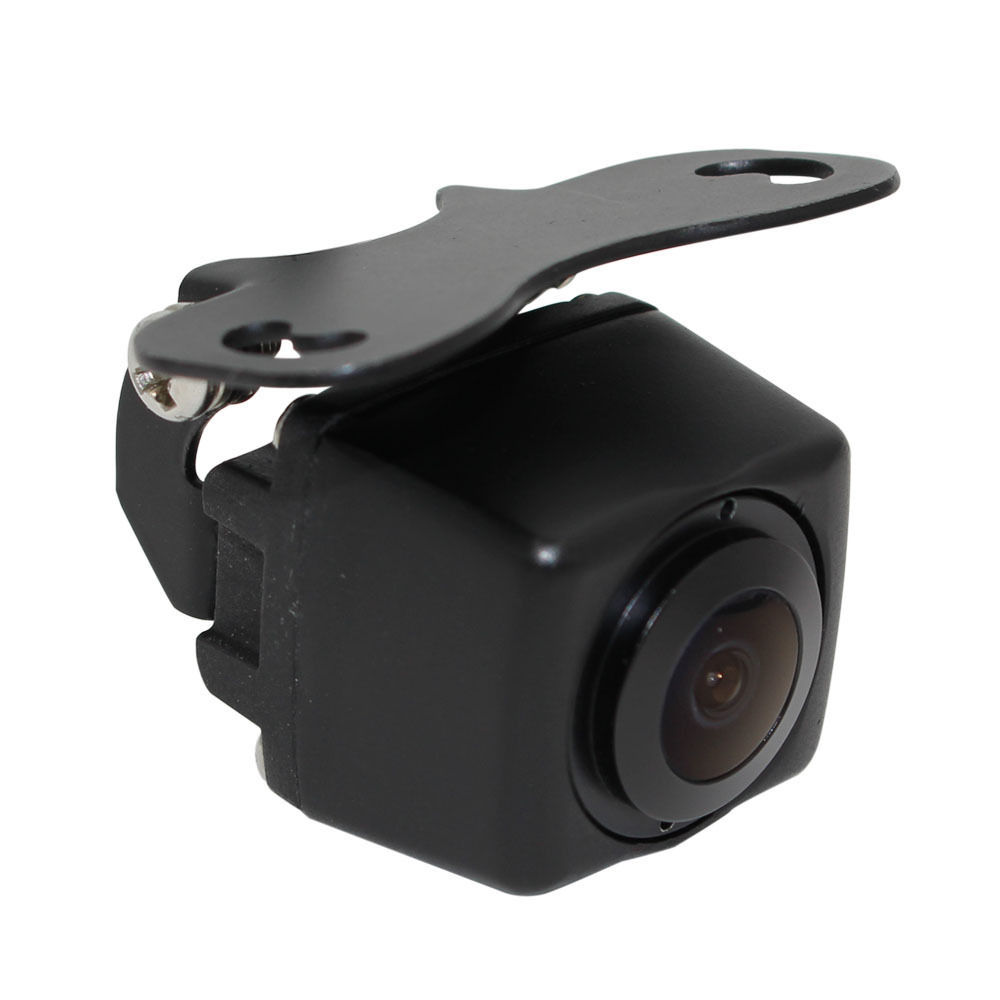

CAMERA:

  • Mini bracket mount
  • wide angle - 1080P resolution
  • IP69K water resistant
  • Low light operation
  • 10 metre connector

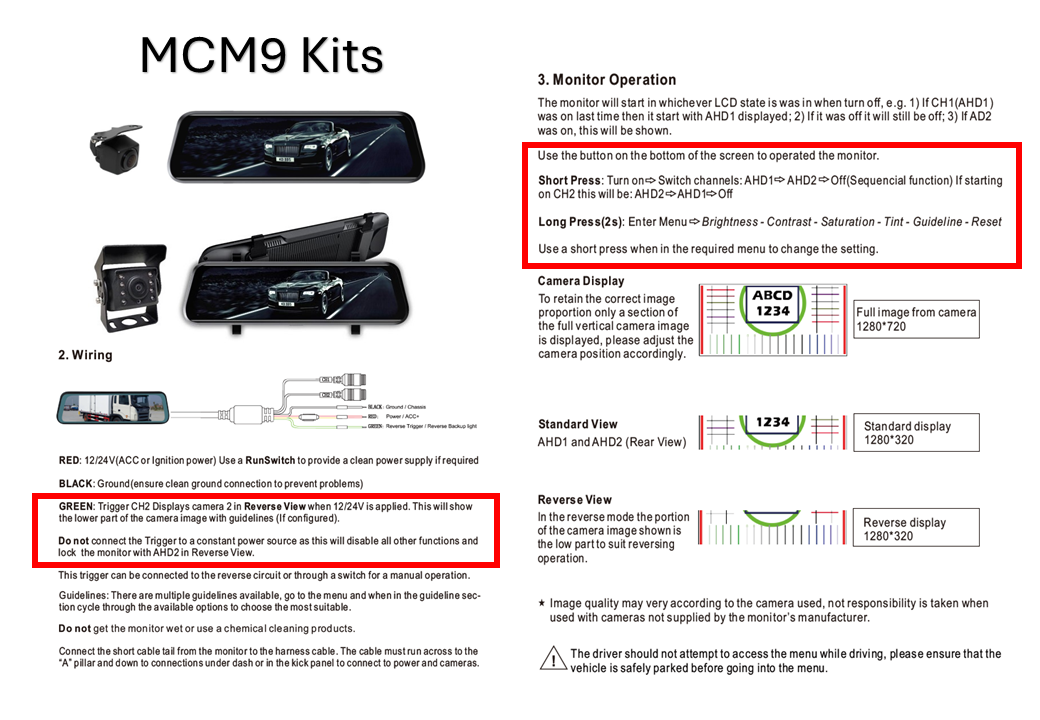

USER MANUAL MCM93C

SKU MCM93C
Barcode # 9326270002713
Brand mongoose
