4K LUKAS DASHCAM

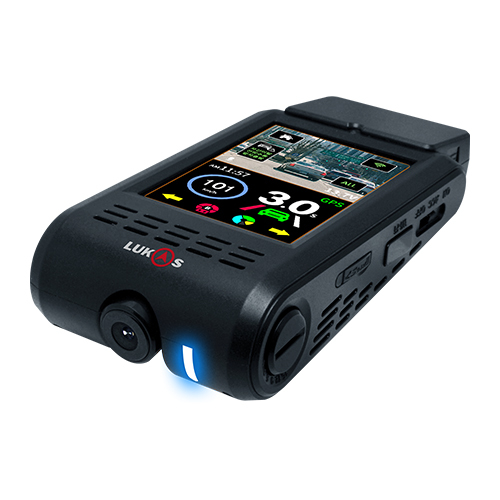

The LUKAS H900-4K-2CH is one of QVIA’s LUKAS dashcams that includes a 3.5" touchscreen monitor.

With its low profile design, 4K front Camera and 3.5" monitor the LUKAS H900-4K-2ch gives the driver such ease of use and can allow visual and audio aids when driving and useing the ADAS. It has a low profile designs.  As with all the Lukas and QVIA dashcams, it is designed, engineered and produced in Korea to the highest levels to ensure it meets your expectations.

The LUKAS H900-4K-2ch dashcam comes with a 2 Year Australian Warranty.

The LUKAS H900-4K-2ch channel dashcam, what does it have?

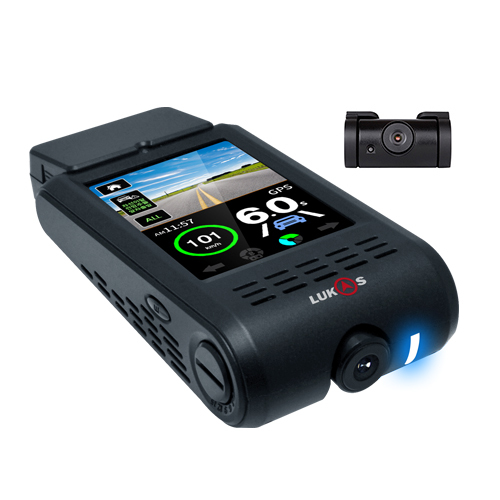

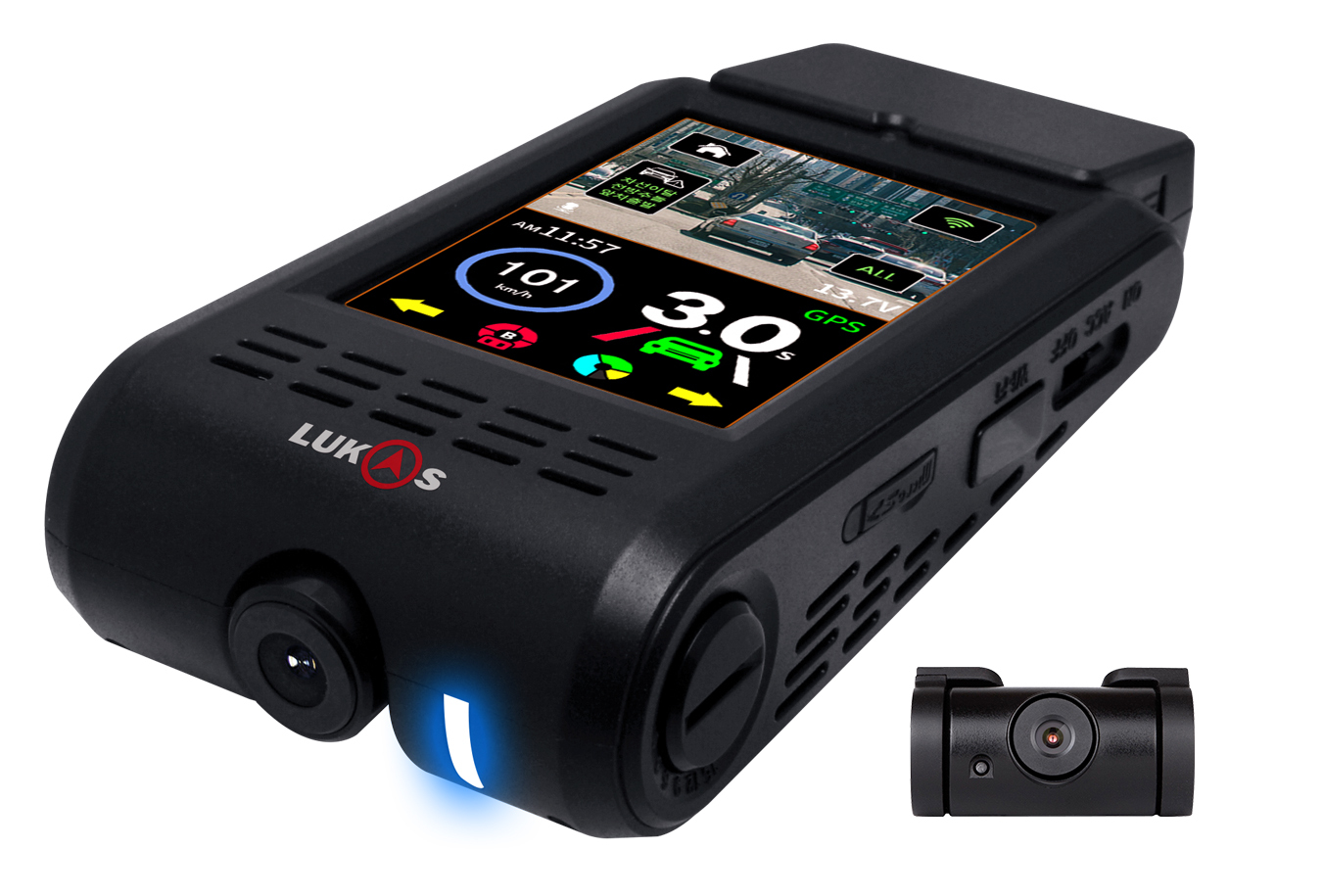

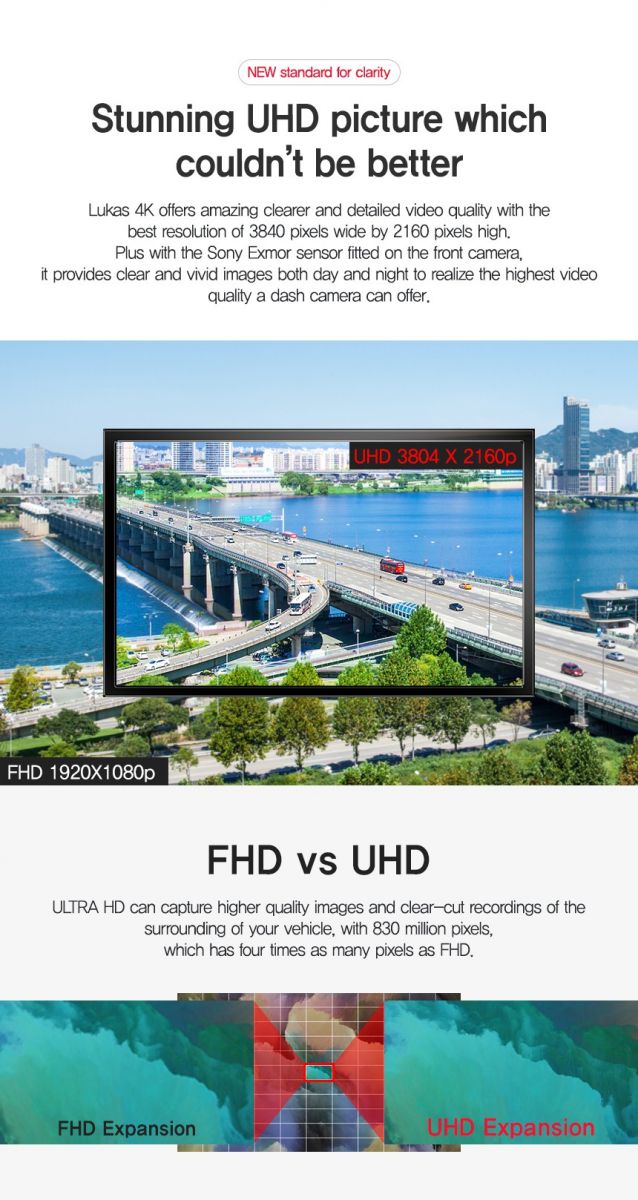

  • 2 CAMERAS the LUKAS H900-4K-2CH dashboard camera has Front 4K and rear camera FHD  recording at 3840p and 2160P, using  SONY Exmor Image sensor for Front and Sony Startivs Image Sensor for rear. The LUKAS H900Q-4K-2CH dashcam comes with wide 132 viewing angle for the front and 141 angles for the rear. Along with your Wide Dynamic Range WDR and Night Vision Technology ensures you capture the highest quality videos day or night, Driving or parked.

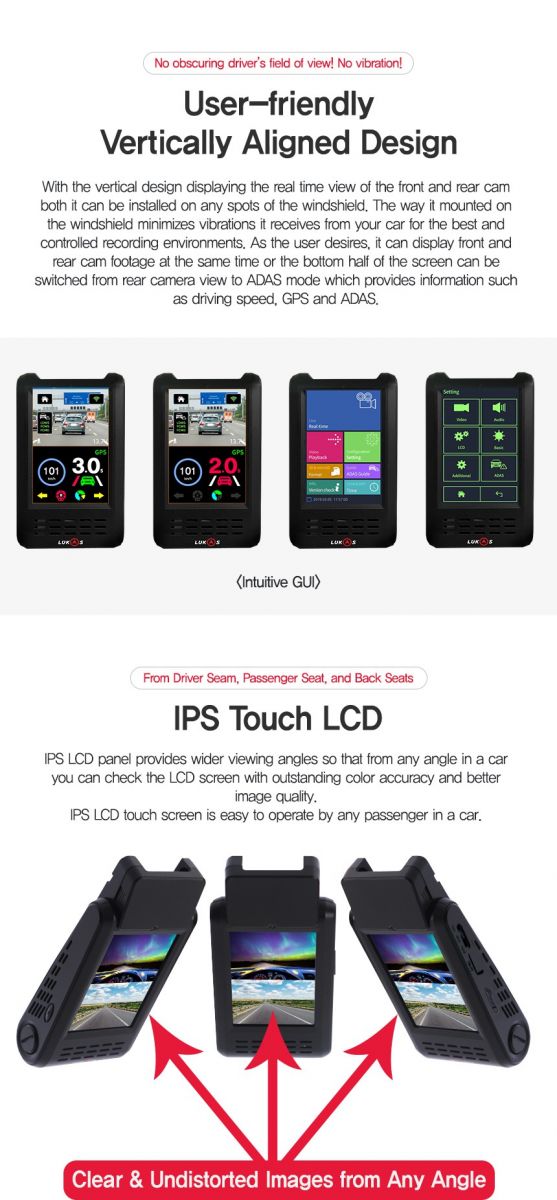

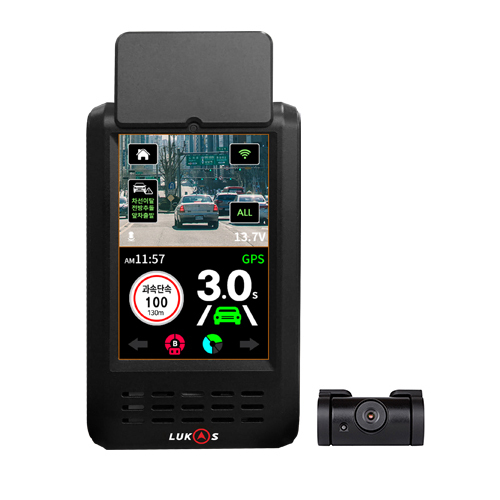

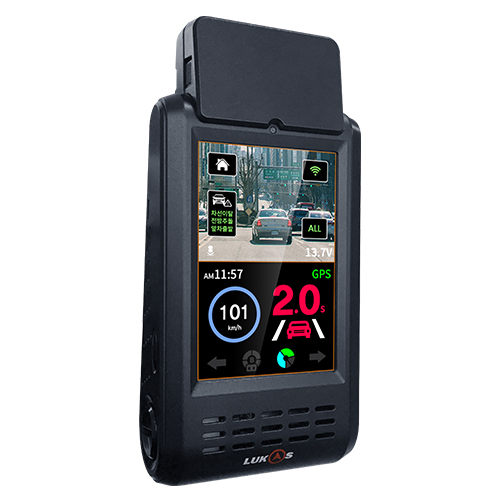

  • TOUCHSCREEN MONITOR. The LUKAS H9004K-2CH comes with a 3.5" LCD TOUCHSCREEN that can allow you to select and view either or both cameras at the same time, adjust setting via the easy to use touchscreen, split the screen to show camera image and driving information such as current driving speed and also include ADAS safety driving warnings.

  • AMBRELLA CHIP. The CPU used for the LUKAS H900-4K-2CH is industry leading AMBRELLA A12 chipset to give you top level performance and reliable years of operation.

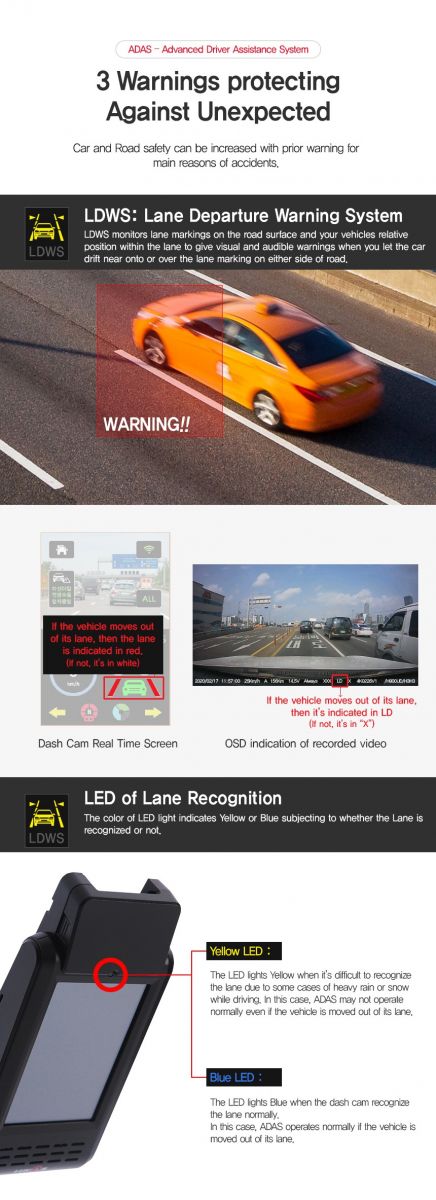

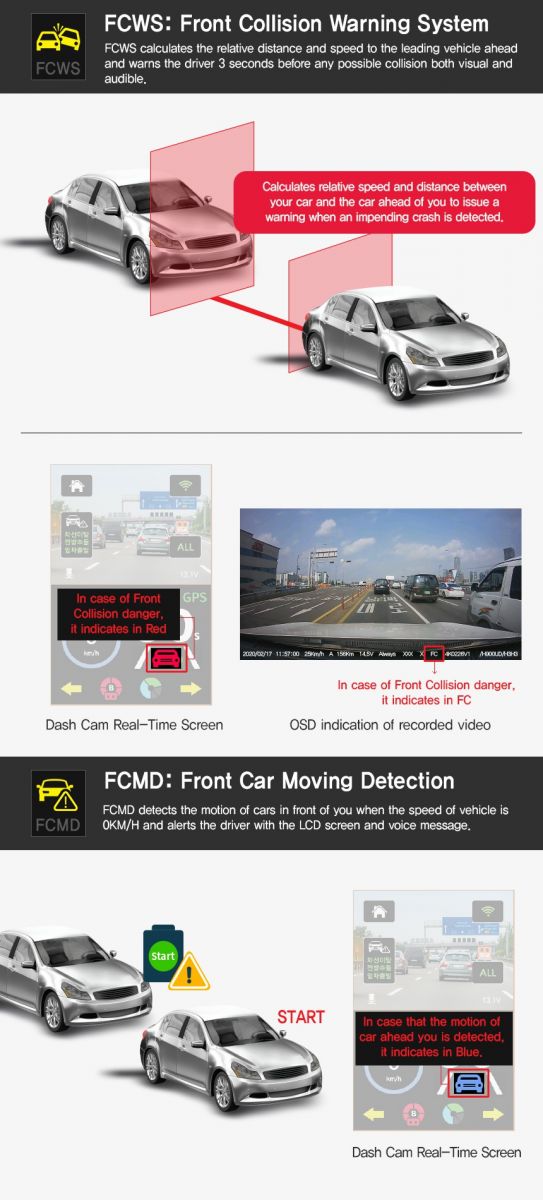

  • ADAS- Advanced Driver Assist System is included in the LUKAS H900-4K-2CH.  LDWS Lane Departure warning system, FCWS Front Collision warning system, FCMD Front Car moving Detection. These features require simple calibration process for you set up for you vehicle. All are programmable ON and OFF.

  • PARKING MODE RECORDING- All the QVIA LUKAS dashcams come standard with permanent power kit. Parking Mode Recording feature of the LUKAS K900QD-2CH to record files even if you parked. The LUKAS H9004K-2Ch can detect Motion and Impact when parked and will keep a 30 second file of the event. It will record the 10 seconds before the event and 20 seconds after the impact. You can change the sensitivity of these setting any time to suite your needs

  • Wi-Fi- the Inbuilt Wi-Fi of the LUKAS H900-4K-2CH allows you to connect your Apple iPhone or Android Smartphone directly to your dashcam via the QVIA APP. This allows you to view and download files, change settings and more without having to take out the Micro SD card

  • GPS. The GPS can provide you with location and speed information recorded directly to your micro Sd card. The H900 comes with small GPS module and connector

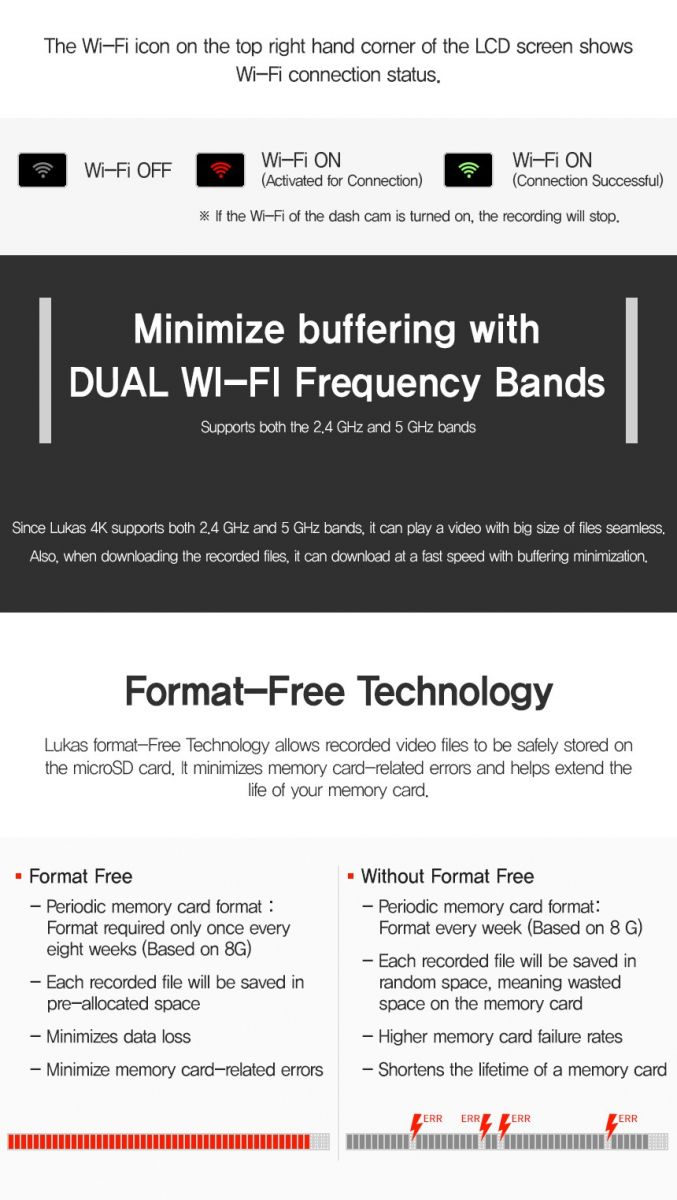

  • MICRO SD CARD The LUKAS H900-4K-2CH DASHCAM comes standard with 128GB Micro Sd card. You can use up to 512GB micro SD card to massively increase the number of hours you can record before the recording starts to loop. Its format free technology extends the lifespan of your memory card and provides a more secure recording process.

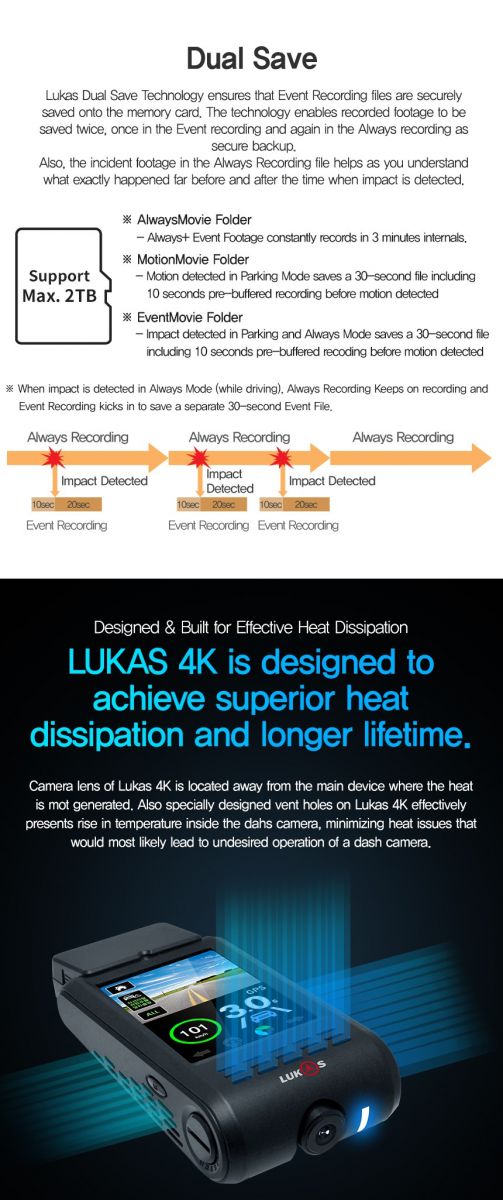

  • RECORDING MODES.  The LUKAS H900-4K-2CH will allocate your files into modes.   ALWAYS- Standard driving it will record in 3-minute videos. EVENT- Records before and after impact is detected for 30 seconds in total, 10 sec prior and 20 sec after impact. MANUAL- Records when the ‘M’ button is pressed. Records for 30 seconds both front and rear. MOTION DETECTION RECORDING- Records when motion is detected during parking mode. Records for 30 seconds both front and rear. TIME LAPSE – Captures one per second during parking. Allows more recording files during parking.For more information check out the information on this page or Contact us for so we can answer any of your questions

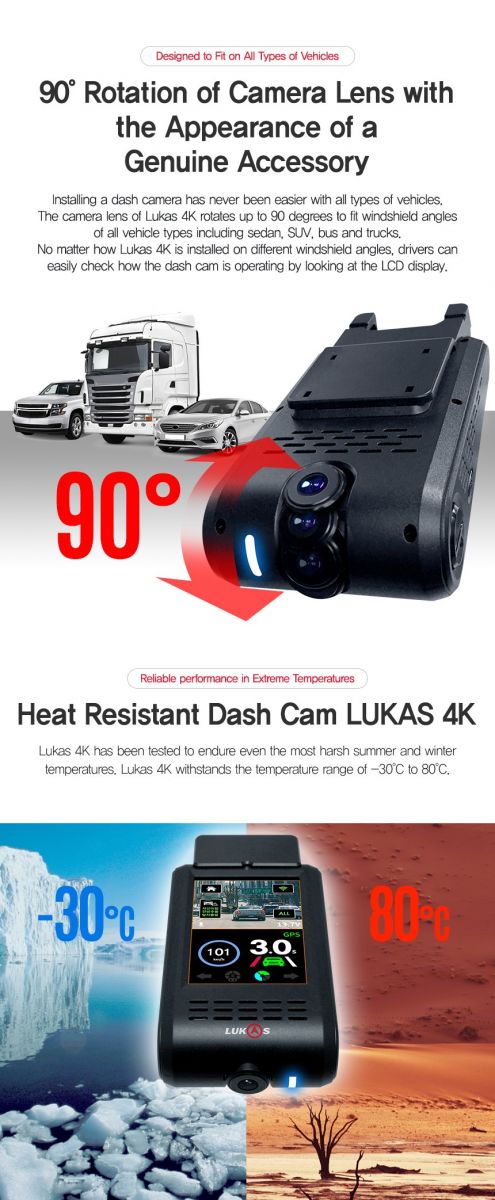

  • Heat ResistanceThe LUKAS QVIA dashcams are designed and engineered to withstand the High Heat temperatures for operation and recording within your vehicles environment.





What do you get in the box?

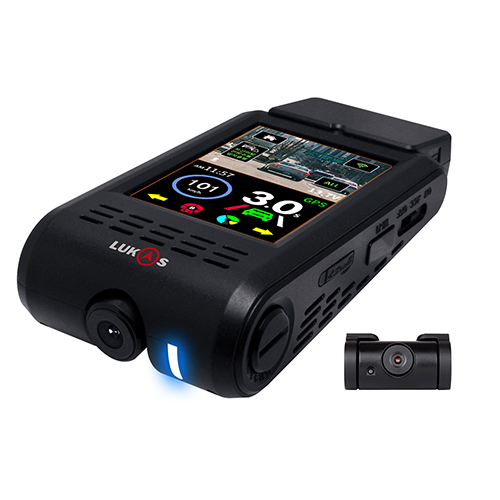

1 x H900-4K Front Dash Cam Main unit

1 x H900 Rear camera

1 x GPS module

1 x 5 Metre Cable connection for rear to front camera

1 x Hardwire permanent power kit

1 x 128GB Micro SD Card

1 x Front Camera mount bracket

2 x Adhesive pad for cameras

1 x User Manual

For installation of Hardwire kit and Rear camera we recommend installation by professional.



(H900-4K-2)



Product Specifications

LUKAS LCD MODEL

H-900 4K


K900QD

Resolution /
Frame Rate

2CH Quad 4K + Full HD

F : 3840 x 2160p @ 30fps
R : 1920 x 1080p @ 30fps

Memory

128GB

Camera

Front : 12.35M Effective Pixels,
Sony Exmor Image Sensor (IMX 377)

Rear : 2.13M Effective Pixels
Sony Startivs Image Sensor (IMX 307)

CPU

Ambarella A12

Viewing Angle
(Approx.)

F : (Diagonal) 132°
R : (Diagonal) 141°

Recording Modes

Always Recording, Event Recording,
Parking Mode Recording (Motion Detection or Time Lapse), Manual(Emergency) Recording

Video Compression

MP4

Wi-Fi

O

GPS

Dual Band (GPS+Glonass)

Microphone

Built-in

Speaker
(Voice Guidance)

Built-in (21 languages)

LED Indicators

Front : Security LED, Recording LED
Rear : Security LED

Low-voltage
Cut-off System

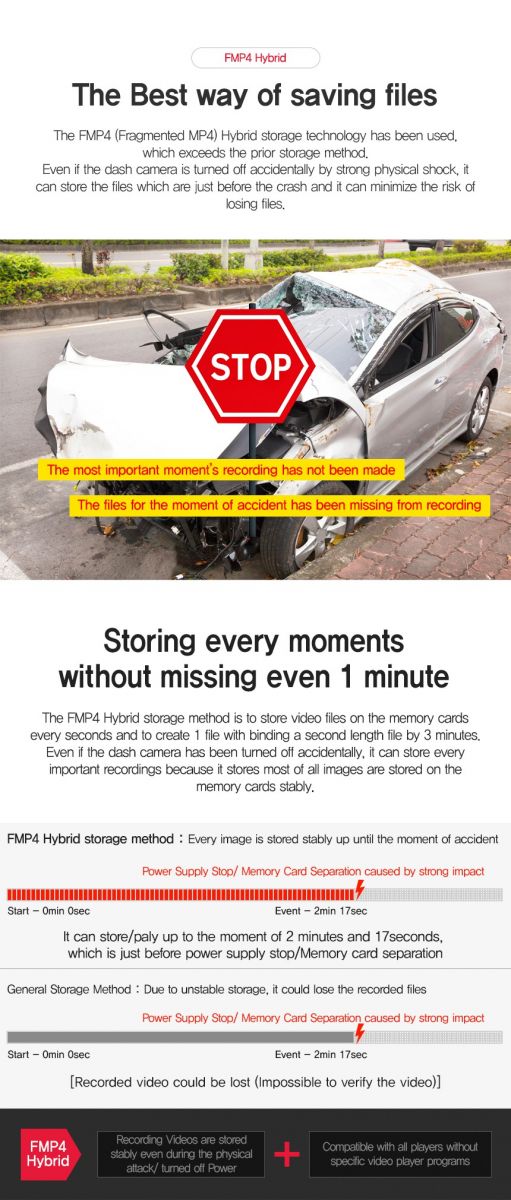

Format Free
System

Current
Consumption

390mA

Operating Temp.
Storage Temp.

-30t ~80t / -40t ~90t
(-22F ~ 176F / -40F ~ 194F )

Screen / Resolution

3.5 inch touchscreen / 320*480

Size(mm)

F : 76 x 133 x 36
R : 50 x 26 x31

Weight(g)

F : 170 / R : 25

ADAS 3.0

ADAS (Advanced Driver Assistance Systems)

LDWS (Lane Departure Warning System)
FCWS (Forward Collision Warning System)
FCMD (Front Car Moving Detection)
(ADAS can be selectively turned on and off / Configuration settings for sensitivity and speed for alarm activation)

2nd Monitor
(Option)

Real-time Speed, GPS Signal Status
Real-time RPM, Turn Signal, Brake pedal monitoring system
TTC Information (Time-to-Collision)
: Calculates distance between and speed of leading and following vehicles to
indicate how much spare time the driver has before a potential foward collision provided that the leading vehicle abruptly stops.
ADAS Information : Real-time Lane Detection, Real-time Front Car Detection
(Lane and Car icon on the display changes in color when LDWS, FCWS alarm is activated)

Vibrator
(Option)

ADAS Seat Vibrator
Physically Alerts the Driver when LDWS, FCWS alarm is activated
(Configuration settings for vibration intensity, on/off option)

Other features

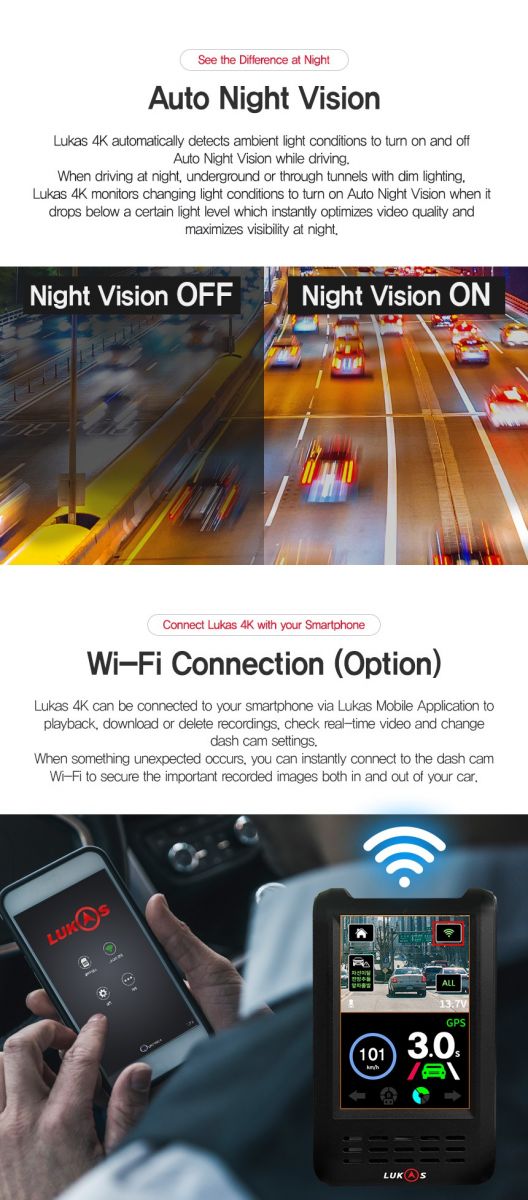

- Lukas Night Vision / WDR
- Built-in Supercapacitor
- Scheduled Memory Card Format : Schedule memory card format every 4, 8, 16, 32 weeks to minimize potential memory card errors.

*Subject to Change for product improvement

SKU H900-4K-2CH
Barcode # 8809359726041
