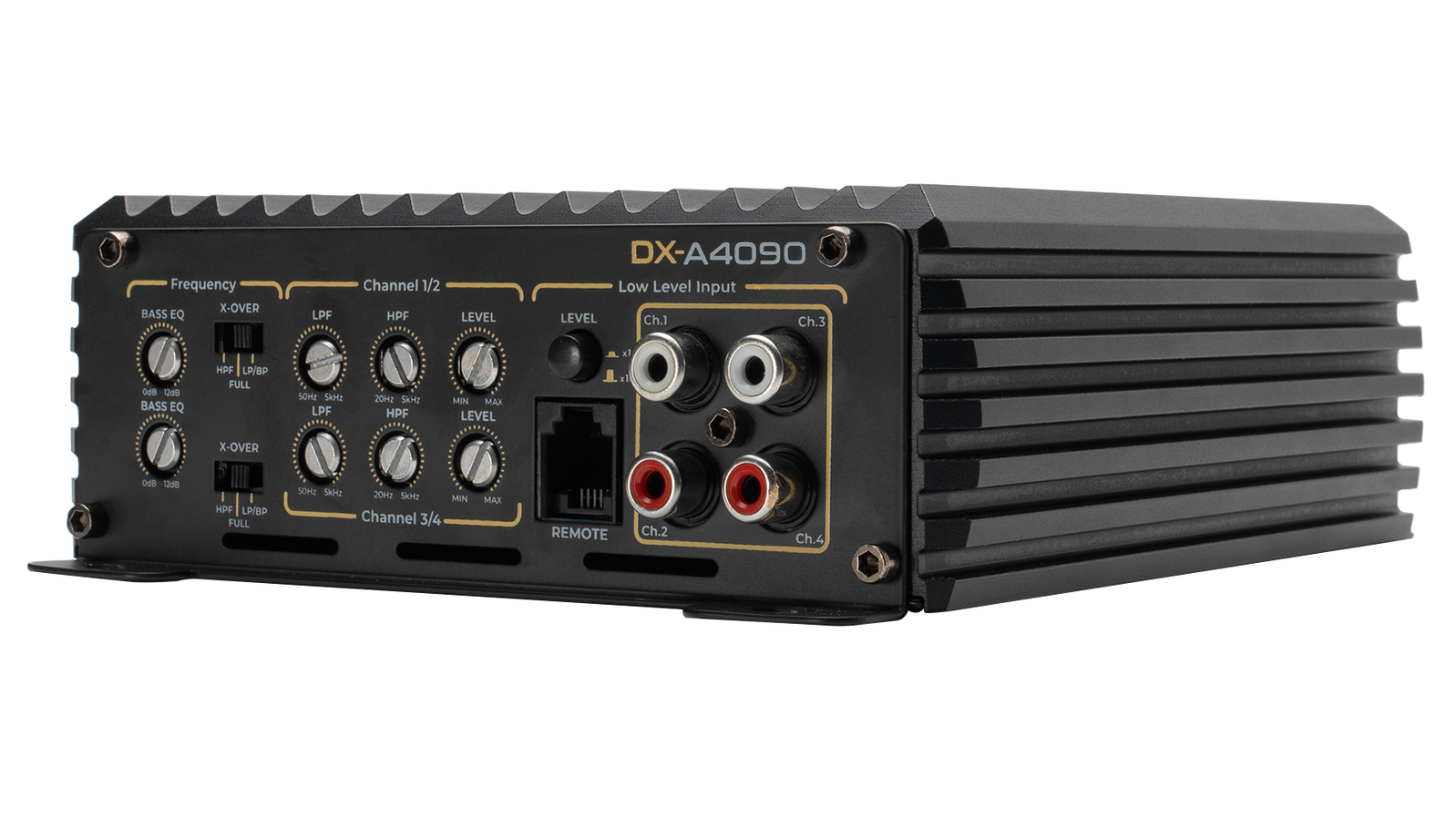

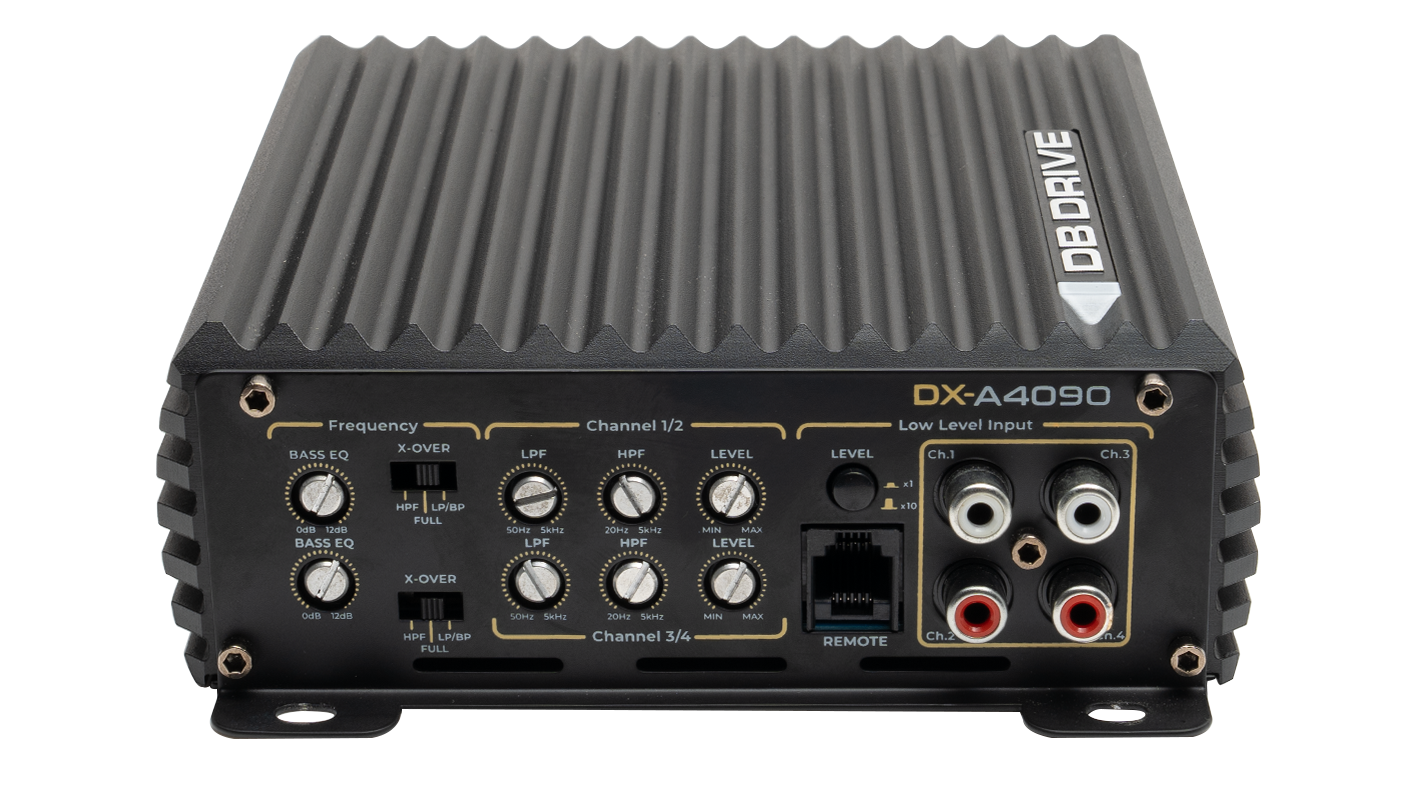

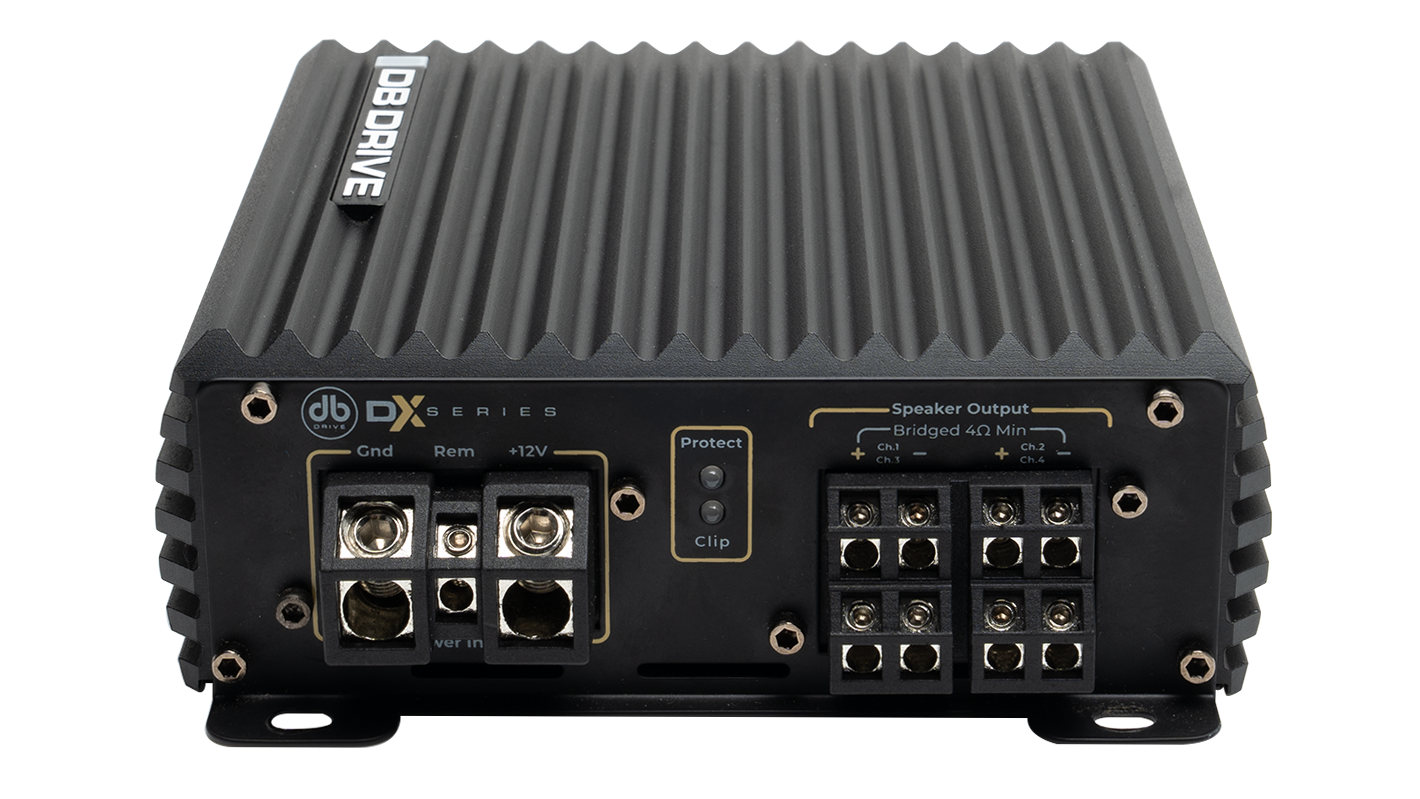

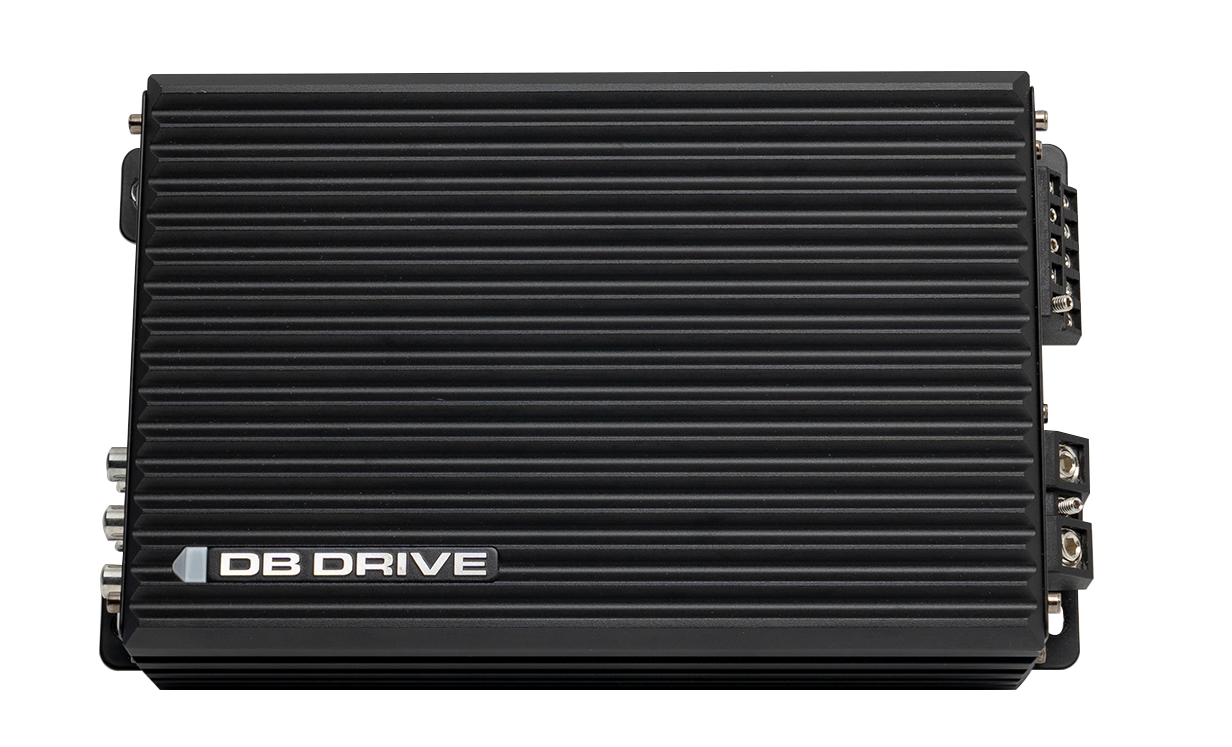

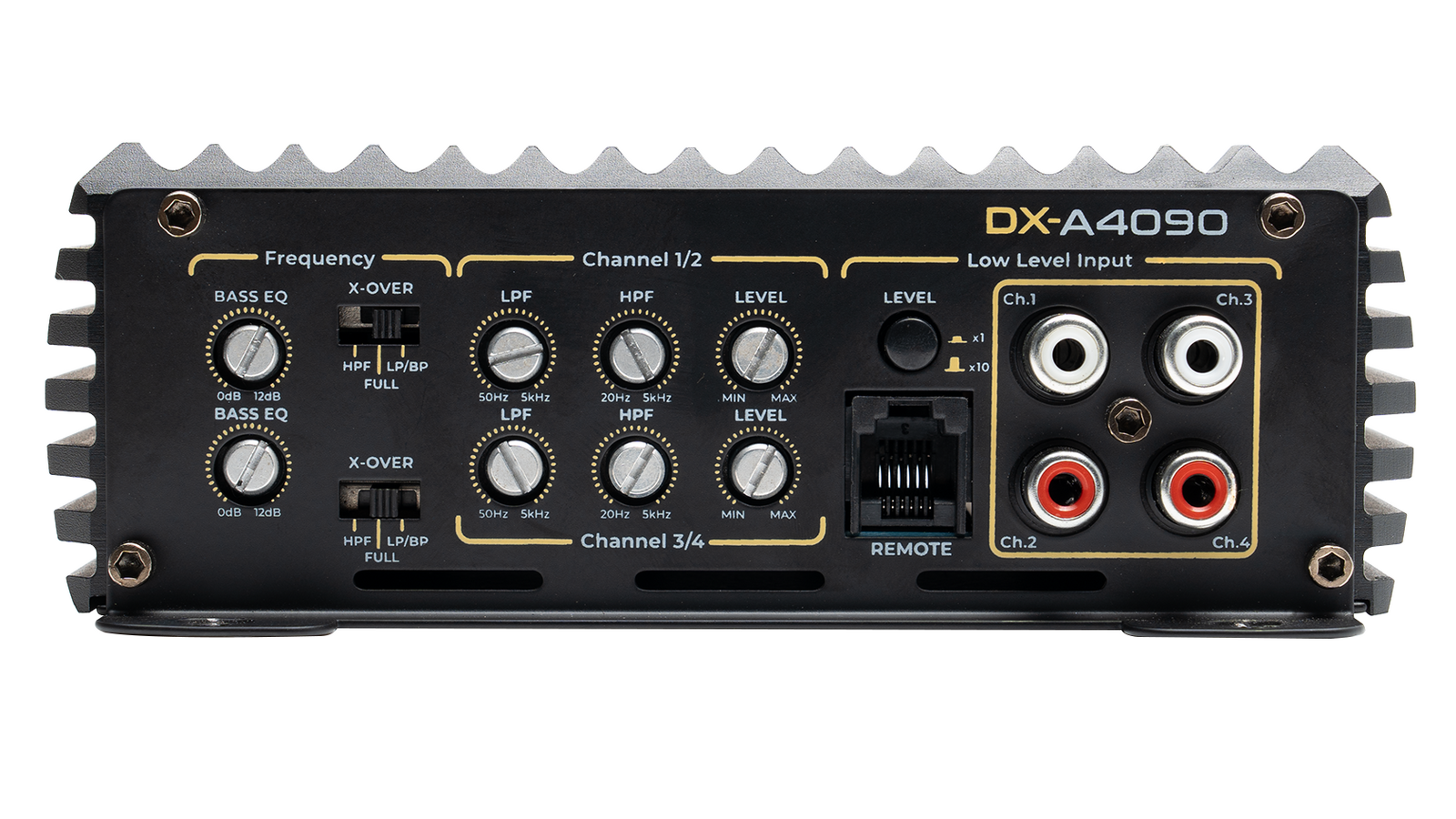

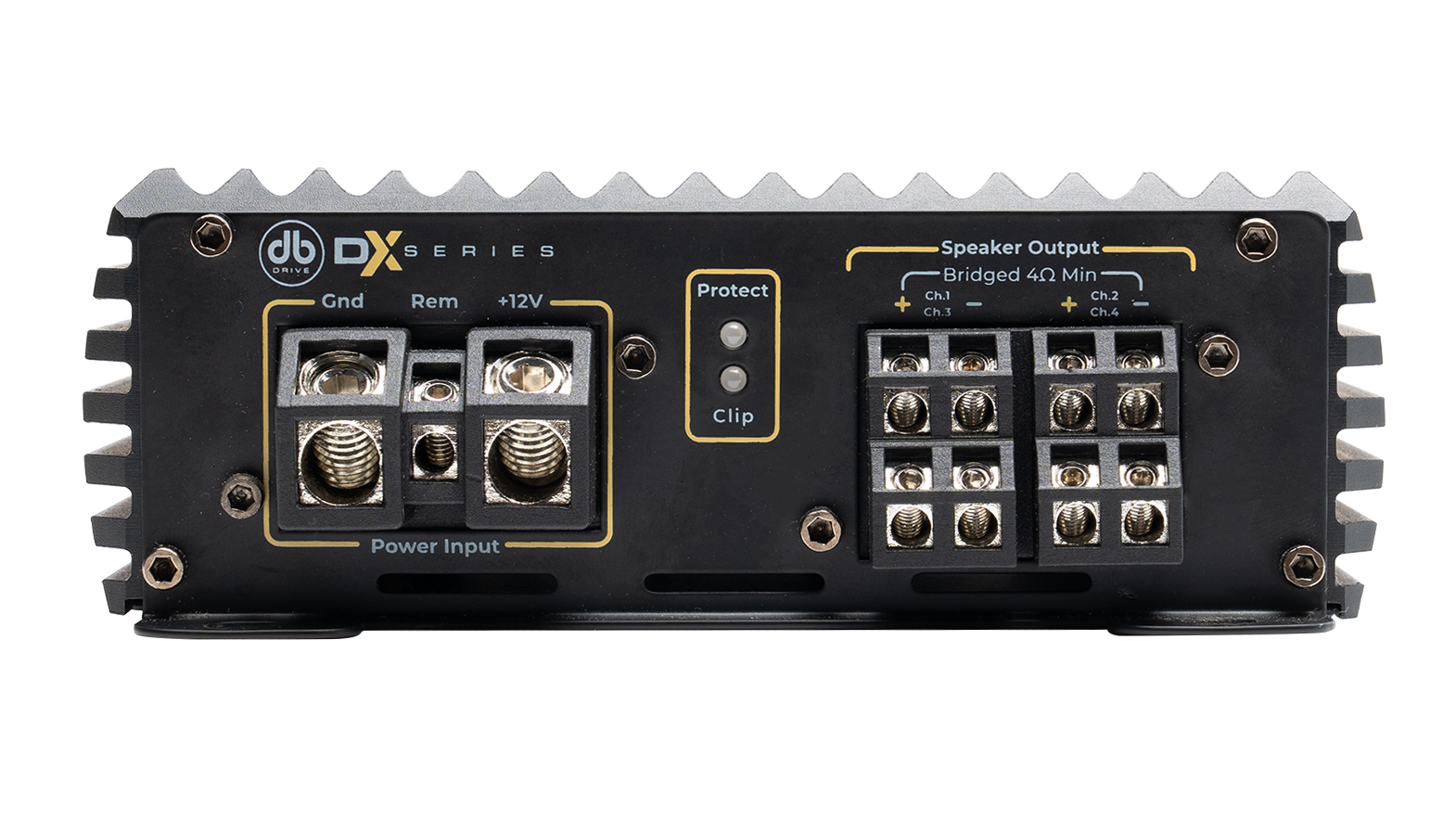

For premium sound in your vehicle, the DB DRIVE DX-A4090 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: • Powerful Output: 90W x 4 at 4 ohms, 140W x 4 at 2 ohms, delivering clear, full-range sound. • Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. • High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems. • Adaptive Crossover: Fine-tune your audio for optimal sound. • Hi-Fi Playback: Reproduces high-resolution audio with precision. • Precision Tuning: Metal potentiometers ensure stable settings. • 4-Layer PCB: Delivers cleaner, more accurate sound. • Compact Design: Easy to install without compromising on power. Transform your car into a concert hall with the DB DRIVE DX-A4090 for sound like never before.

12 Months warranty

  • Class D Technology
  • Direct Connect Speaker Terminals
  • Large Gauge Power Wire Inputs
  • Selectable Low Level RCA Input Range
  • PWM Mosfet Regulated Power Supply
  • APC - Audio Protection Circuit
  • SESI - Signal Evaluation Status indicator
  • CHM - Collective Heat Management
  • 2Ω stereo / 4Ω Bridged capability
  • (Rated @ 14.4 volts)
  • Dynamic Power: 4 x 90 Watts @ 4Ω
  • Dynamic Power: 4 x 150 Watts @ 2Ω
  • Dynamic power: 2 x 300 Watts @ 4Ω (bridged)
  • Rated Power: 4 x 80 Watts @ 4Ω
  • Rated Power: 4 x 140 Watts @ 2Ω
  • Rated power: 2 x 270 Watts @ 4Ω (bridged)
  • Ch 1-2 High Pass Crossover: 20Hz- 5kHz
  • Ch 1-2 Low Pass Crossover: 50Hz- 5kHz
  • Ch 3-4  High pass Crossover:  20Hz- 5kHz
  • Ch 3-4  Low pass Crossover: 50Hz- 5kHz
  • Crossover Slope @ 12 dB
  • Bass Boost @ 45Hz : 0-12dB
  • Input Sensitivity: 250Mv -  6V
  • Signal to Noise ratio :  >92dB
  • Frequency Response:10Hz-22KHz
SKU dx-a4090
Brand DB Drive
