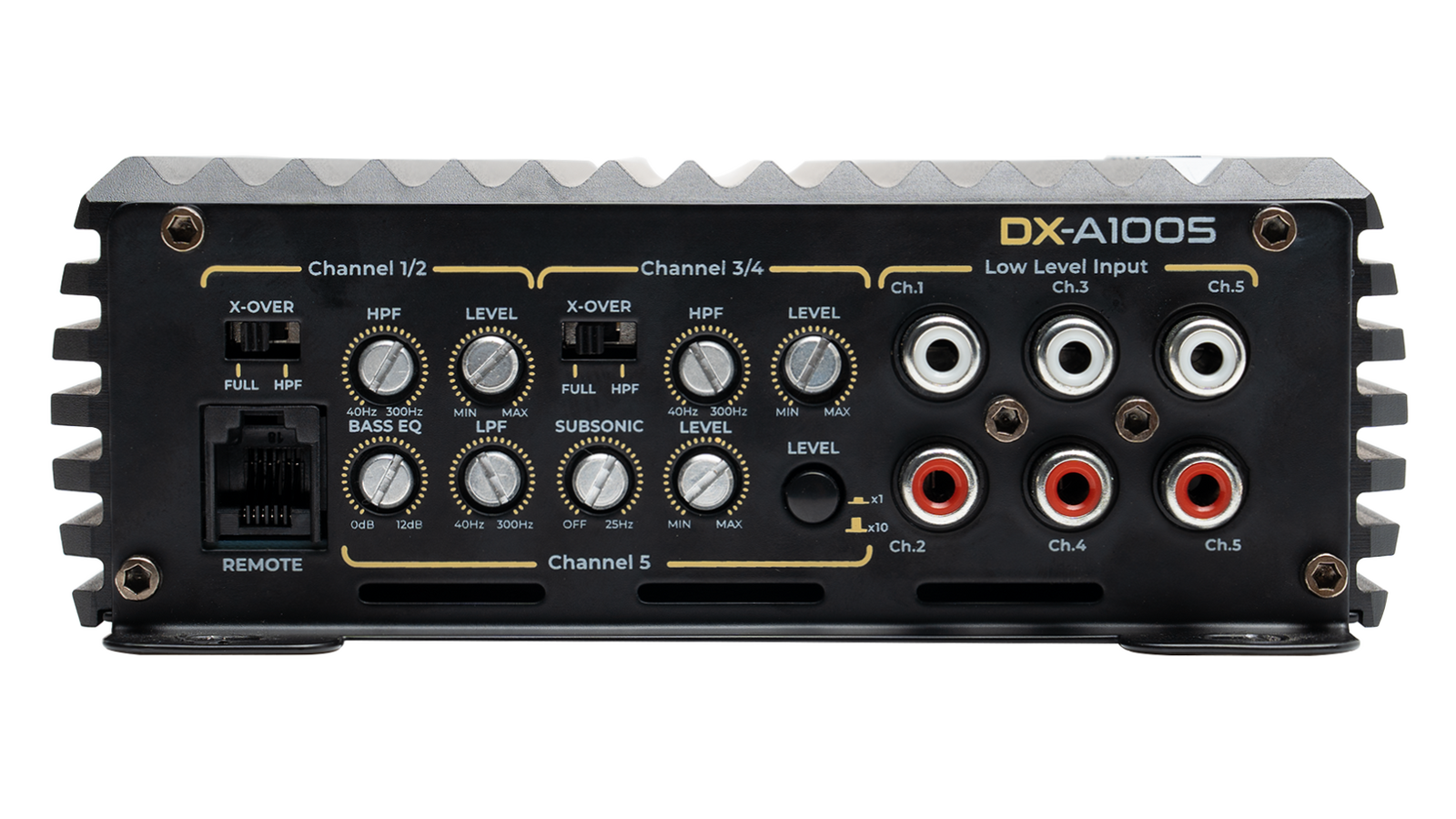

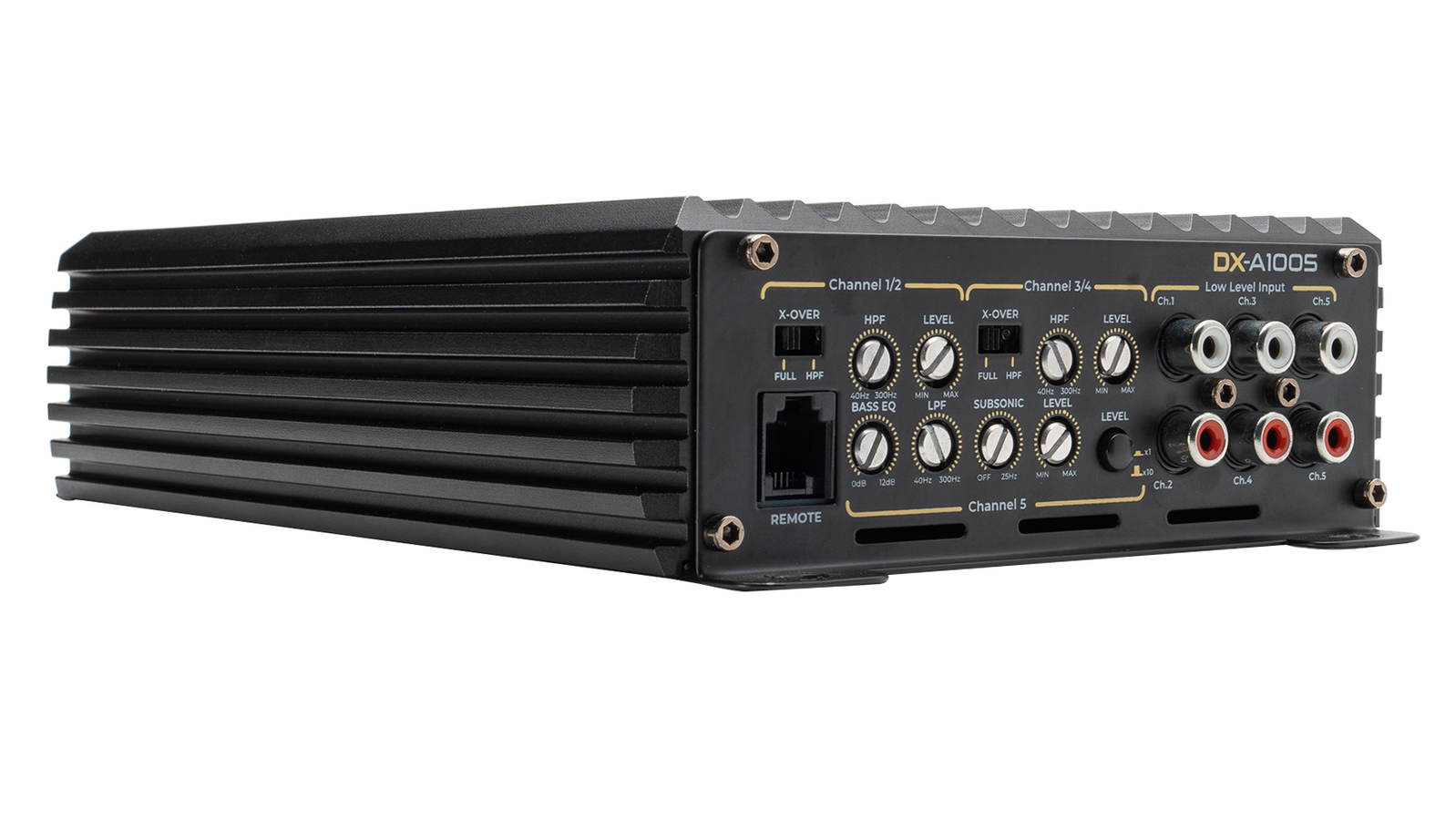

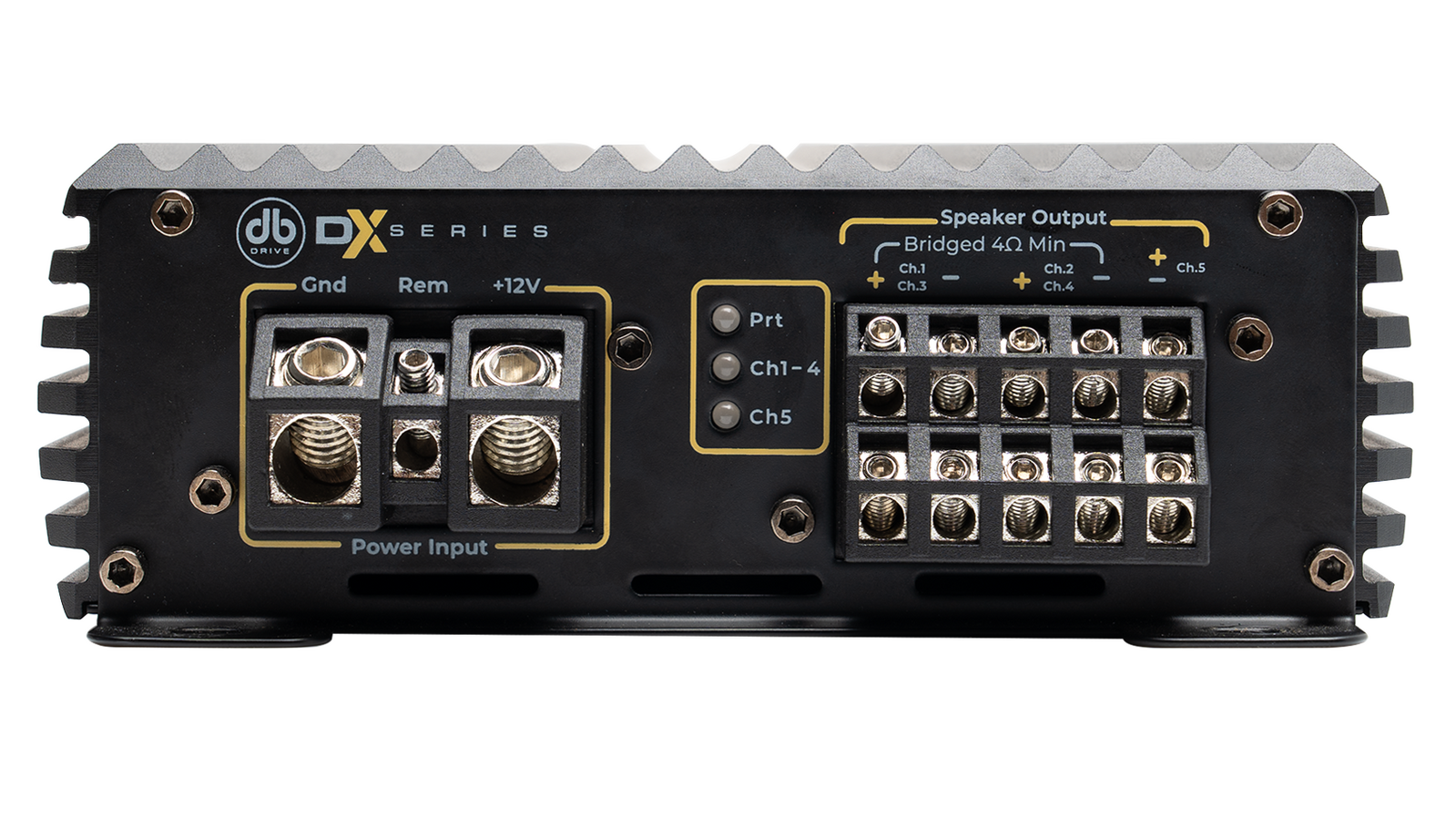

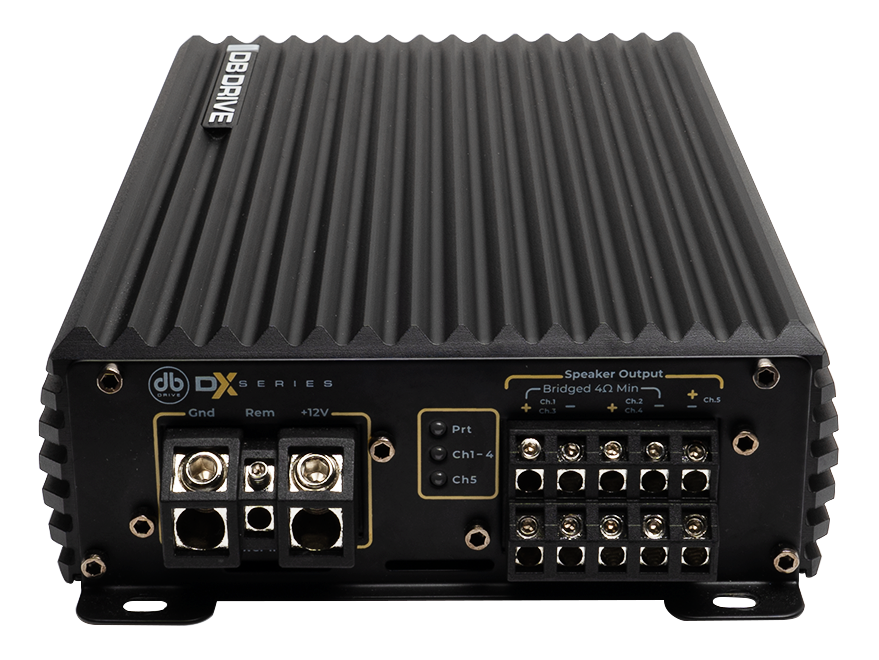

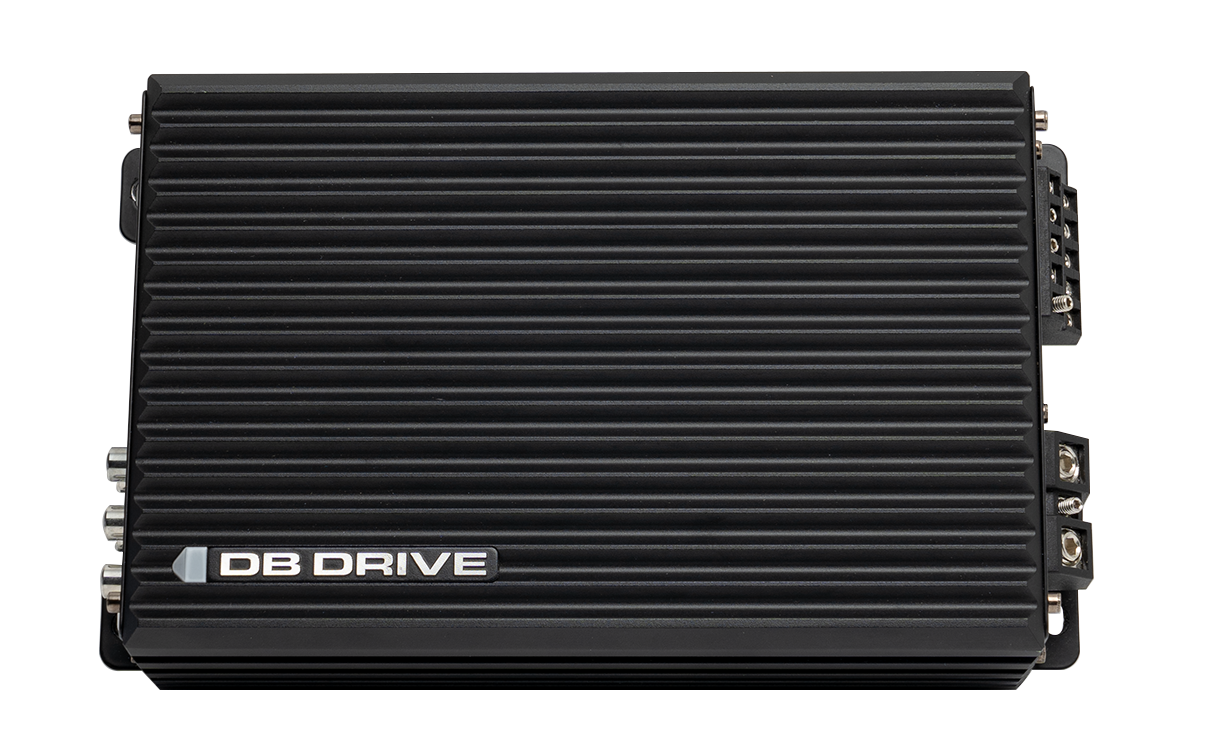

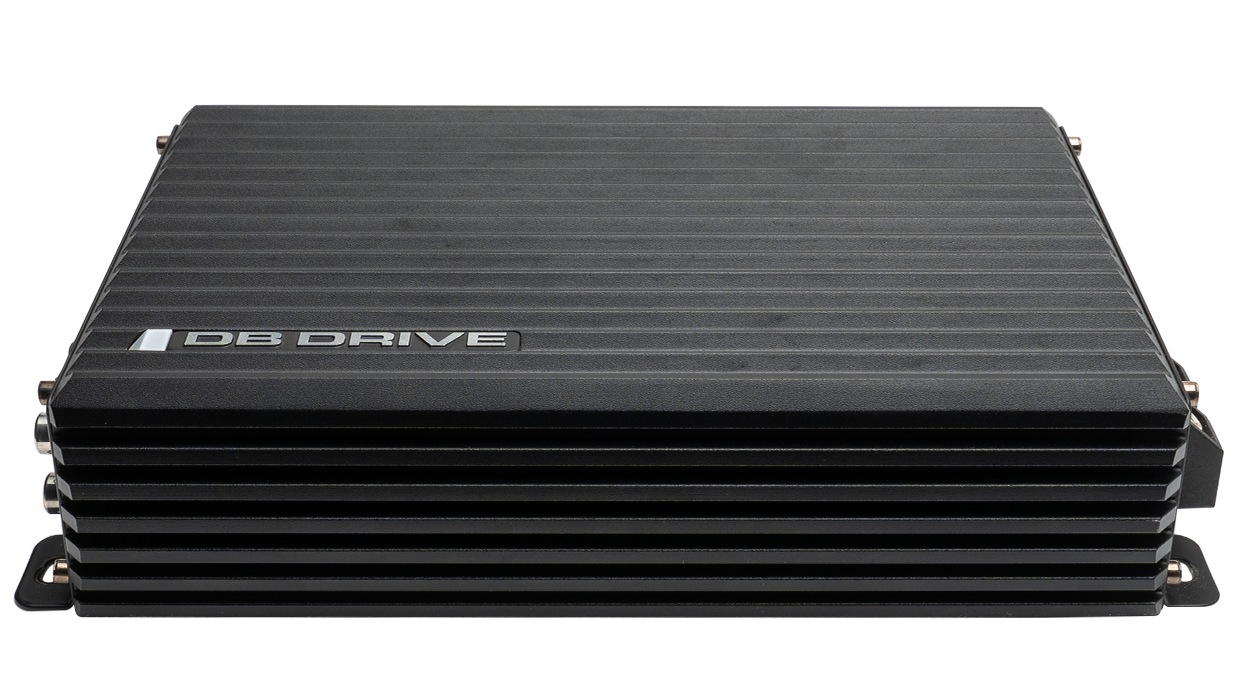

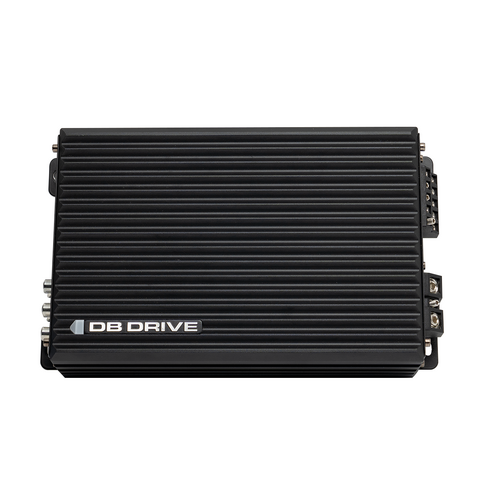

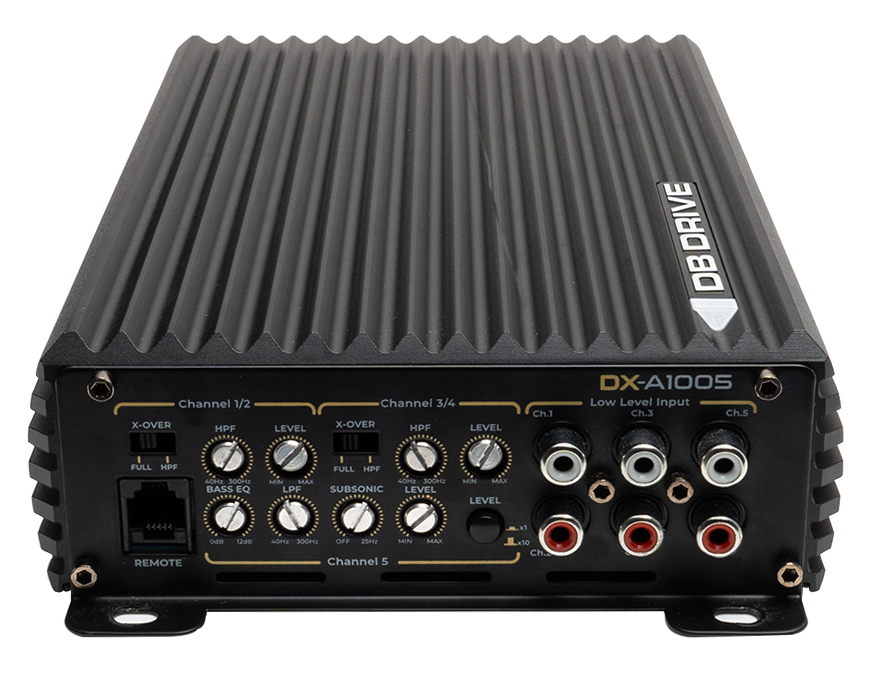

The DB DRIVE DX-A1005 delivers powerful, dynamic sound for both audiophiles and casual listeners. Key Features: Powerful Output: 90W x 4 at 4 ohms + 350W for the subwoofer at 2 ohms, ensuring deep, precise sound. High-Efficiency Design: Perfect for modern electrical systems and compact vehicles. Adaptive Crossover: Fine-tune your bass for optimal sound. Hi-Fi Playback: Delivers distortion-free, high-resolution audio. Precision Tuning: Metal potentiometers for stable settings. 4-Layer PCB: Provides cleaner, more accurate sound. Compact Design: Easy installation in tight spaces. Transform your car into a high-performance sound system with the DB DRIVE DX-A1005. Experience superior sound today.

Read More
  • Dynamic Power: 4 x 90 Watts + 250 Watts @ 4Ω
  • Dynamic  Power: 4 x 150 Watts  + 500 watts  @ 2Ω
  • Rated Power: 4 x 80 Watts + 200 Watts @ 4Ω
  • Rated  Power: 4 x 140 Watts  + 450 watts  @ 2Ω
  • Ch 1-2 High Pass Crossover: 40Hz - 300Hz
  • Ch 3-4 High Pass Crossover: 40Hz - 300Hz
  • Ch 5 Low Pass Crossover: 40Hz - 300Hz
  • Subsonic Filter: 0 - 25 Hz
  • Crossover Slope @ 12 dB
  • Bass Boost @ 45Hz : 0-12dB
  • Input Sensitivity: 250Mv -  6V
  • Signal to Noise ratio :  >92dB
  • Frequency Response:10Hz-22KHz

MANUAL for DX AMPLIFIERS

Read More
SKU dx-a1005
Brand DB Drive
  • Class D Technology
  • Direct Connect Speaker Terminals
  • Large Gauge Power Wire Inputs
  • PWM Mosfet Regulated Power Supply
  • APC - Audio Protection Circuit
  • SESI - Signal Evaluation Status indicator
  • CHM - Collective Heat Management
  • 2Ω stereo / 4Ω Bridged capability
  • Remote Bass Control Included

DOWNLOAD PRODUCT MANUAL : DX AMPLIFIER

12 Months Warranty
