You can access your Tracker by Smartphone TEXT, or APP or PC. It is reliable, accurate and very easy to use.
If you want to track your own personal car, a small fleet of trade vans (upto 10 vehicles) , the VT904 GPS TRACKER will give you the tools you need to know where you vehicles are.
GPS tracking devices need to be used responsibly, with disclosure and consent of drivers and not breach any privacy rights. Mongoose GPS trackers are not for covert use. You must disclose to any driver/user that you are using a GPS tracking system.
All customers need to ensure that they install and use GPS tracking devices in accordance with all applicable laws, regulations, standards and industry code of conduct
The 4G VT904 GPS Vehicle tracker will also give playback history of where that vehicle was and specific time and date plus driving information such as speed, Ignition status, time parked and other details..
As
Some of the Main uses for the 4G VT904 GPS vehicle tracking is,
Where is it now ?
Open the APP and click "Real time". The map shows where your vehicle is located.
Where was it ?
History shows the route driven. Select 'play' and the screen shows the route taken.
Select any day - last 6 months history always maintained.
Any other costs ?
VT904 GPS tracker requires a mobile SIM card to be inserted into the tracker, this enables the collected data to be sent to the website so it can be viewed by the user. This Sim card is not included. You need to get MOBILE SIMCARD that has VOICE, TEXT and DATA
A PrePaid can be the most simple and least expensive but discuss options with your mobile provider.
THE MOBILE APP :
Download and open the APP on your smartphone to logon using your trackers IMEI number (ID number) & password.
If
The APP is a powerful tool that allows you to locate and monitor your GPS tracker.
Multiple users of the APP & website is permitted.
Logon Screen Main APP menu 'Real Time' History
'Real time' shows you the current or last reported location - compared to where your phone is.
It is displayed on the APP's own maps - map or satellite view.
REAL TIME VIEW ON WEBSITE FOR SINGLE USER

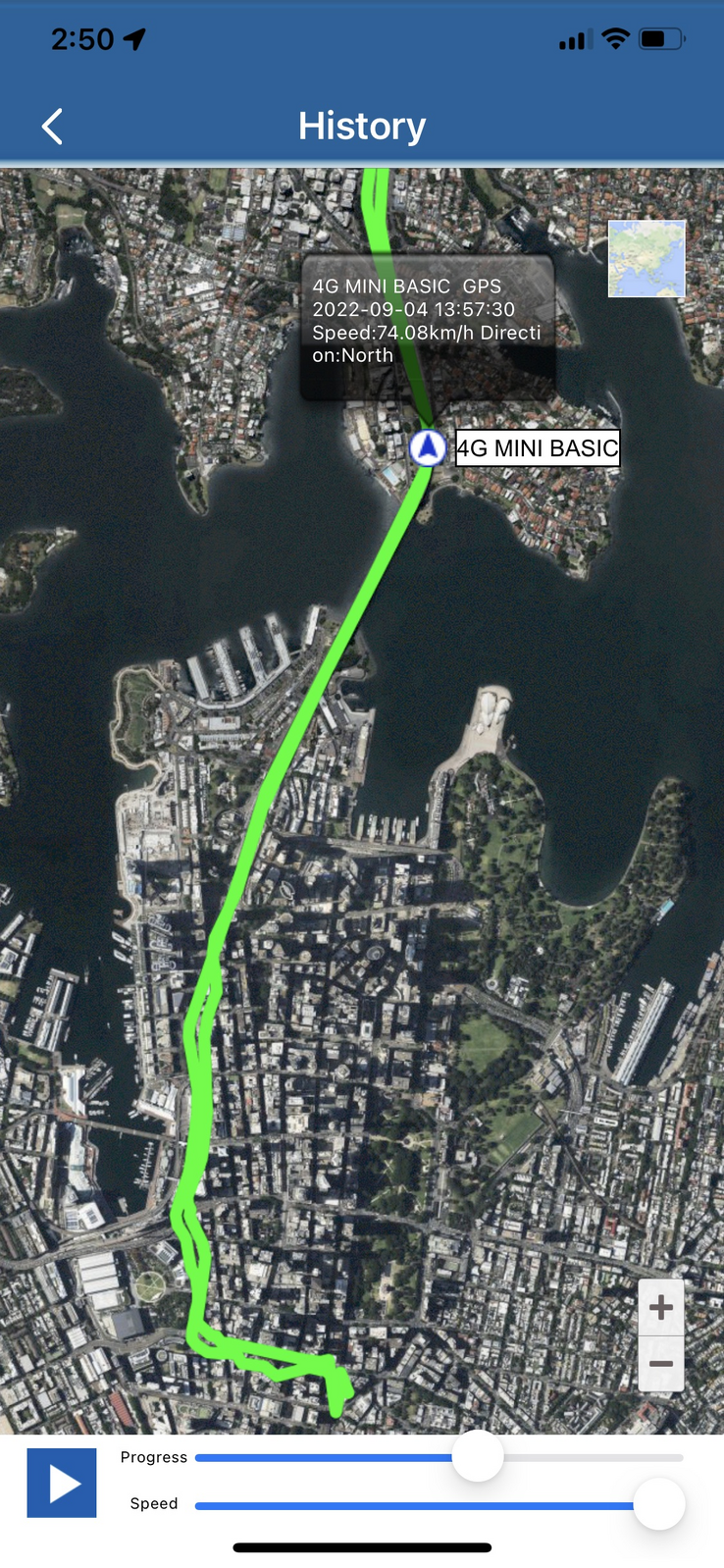

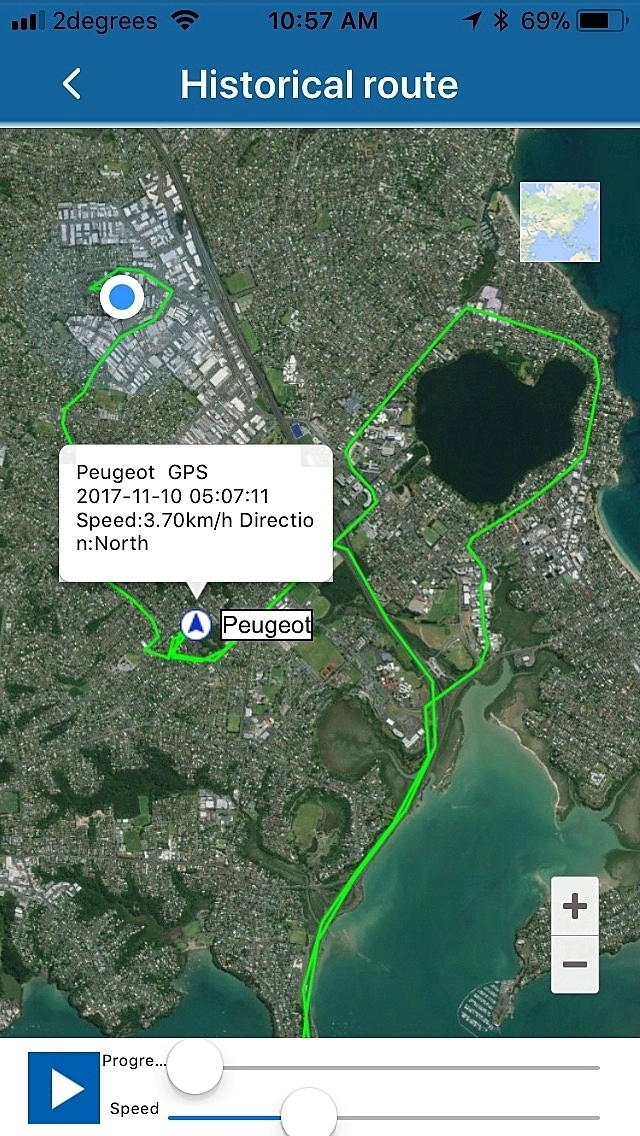

'History' playback allows you to select any day up to 6 months ago so you can see where the tracker travelled.
You can playback at different speeds, pause and zoom in to see more map detail. map or satellite view.
A 'geo-fence' is an invisible boundary. If the tracker moves in or out of the area it send and Alert to the APP and Website
A 'geo-fence' is easily set by moving the pointer around the map and then a slider to define how large the boundary is.
You can set multiple areas.
THE ONLINE WEBSITE:
With the online website, you use the same logon details as the mobile APP.
Again, the website is free to use. No Access Charges from Mongoose
Please note:
The free access of the APP and website is provided for Mongoose GPS customers.
The APP and website are used by many GPS companies worldwide and features and functions may change without notice. Mongoose accepts no responsibility for control of access to the APP or website. The APP and Website access and performance can be affected by Internet, GPS and Mobile telecommunication perfomance that is outside the control of Mongoose.
Your use of the APP and website are self managed. Mongoose can provide initial support if required.
COMMON QUESTIONS FOR OUR GPS TRACKERS FAQ
INSTALLATION
Installation costs can vary according to vehicle type and whether the engine immobiliser option is fitted.
Costs can vary typically between $100 and $150 - please discuss with your chosen Mongoose dealer.
Responsible use of GPS devices
Mongoose GPS units are designed to provide the user with a convenient and simple to use GPS product for private or business customers.
GPS tracking devices need to be used responsibly, with disclosure and consent of drivers and not breach any privacy rights. Mongoose GPS trackers are not for covert use. You must disclose to any driver/user that you are using a GPS tracking system.
All customers need to ensure that they install and use GPS tracking devices in accordance with all applicable laws, regulations, standards and industry code of conduct.
If you are a business or private user of a GPS system you have the responsibility to check your relevant State or Federal legislation or seek suitable legal advice.
FEATURES
- Mongoose Mobile APP - FREE to download and use
- Website Tracking - FREE to use - no download required
- 4G Network System
- Uses low cost data for location reporting
- Uses text for warning alerts to your phone and tracker set-up
- Apply for 'Account' logon for Fleet tracker users - see all trackers on one screen
- Live track your vehicle(s) on your smart phone, tablet or PC
- History playback (upto 6 months)
- Battery back-up supply if power is disconnected
- Uses LBS (cell sites) for approximate location when no GPS available
- 1 x Master User (full functionality)
- 2 x SOS phone numbers (receives alerts)
- Unlimited viewers (you control who can see your tracker and have access via password)
- Time adjustable for daylight saving
- Engine Starter mortor immobiliser - optional with SP904 (Security Pack) fitment (starter motor only - see cautionary note below)
- SOS-Siren Alert - optional with SP904 (Security Pack) press button or fitment to your siren of your security system
- Geo-fence - sets permitted travel area - multiples can be set
- Manual Arm/Disarm function for alerts
- ALERTS FOR ON WEBSITE AND APP: Ignition - Shock - - Speed - Move - Low power - Power disconnect - (and car alarm sounding if connected)
- Small size: 80mm x 38mm X 17mm
- 9v~75v DC
- Easy installation - only 3 wires (+ optional immobiliser + Optional SOS trigger)
- 12 month warranty
- SIM card required with voice, text & data (Telstra, OPTUS.....) - data only cards not compatible.. SIM CARD NOT INCLUDED
OPTION EXTRA SECURITY PACK SP904
SOS-SIREN ALERT
If you have an Security System in your vehicle with a siren you can connect it to the VT904. When the VT904 gets notice that the Siren has been trigger.An SMS TEXT warnning will be sent directly to 1 or 2 Mobile phone numbers that you have set up. The SMS TEXT message will contain the SOS ALERT details plus send you a link for the VT904s map Loaction
The SOS-SIREN ALERT also can be used standard just as a PRESS button to trigger the VT904 to Send the SOS ALERT
ENGINE STARTER IMMOBILISER
Via APP or Text message you can Immobilise your vehicles Engine Starter motor.This requires installation on Relay to engine starter. Once you send the command the relay will be activation or de-activated.
**Engine Starter immobiliser may not be suitable for all vehicles. It requires installation by Professional Qualified Technician**
If you would like to upgrade your 3G VT900 with new 4G VT904, both products have the same main power harness plug that allows for simple replacement process.
WHATS IN THE BOX OF 4G VT904 GPS TRACKER
1 x VT904 main module
1 x Main power harness
1 x Basic activation Manual
OPTIONAL EXTRA is the SP904 Security Pack.
WHAT is included in SP904 Security Pack
1 x relay for SOS Siren trigger alert
1 x harness for SOS alert
1 x Relay for Starter Motor stop
1 x Basic install guide
WHATS IN THE BOX OF 4G VT904 GPS TRACKER
1 x VT904 main module
1 x Main power harness
1 x Basic activation Manual
FULL MANUAL - VT904 FULL MANUAL
BASIC MANUAL - VT904 ACTIVATION MANUAL
SECURITY PACK MANUAL - SP904 INSTALL MANUAL
Dimensions | 80mm x 38mm x 17mm |
Weight | 53g |
Network | 4G LTE /GSM |
Band | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM 850/900/1800/1900MHz |
Working voltage | DC 9V - 75V |
Woring current | 12V/38mA |
Sleep current | 12V/10mA |
LTE chip | Simcom A7670SA |
GPS chip | AT6558R |
GPS sensitivity | -162dBm |
GPS accuracy | 5m |
Time To First Fix | Cold status 35-80s Warm status 35s Hot status 1s |
Battery | 3.7V 140mAh Polymer battery |
Storage Temp. | -30°C to +80°C |
Operation Temp. | -20°C to +75°C |
Humidity | 5%--95% non-condensing |
External port | Relay |
ACC | Acc wire |
Other port | RS232 |
SKU | vt904 |
Barcode # | 9326270002669 |
Brand | mongoose |
